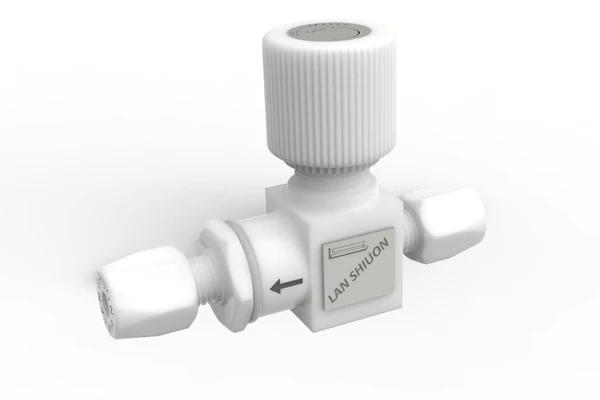

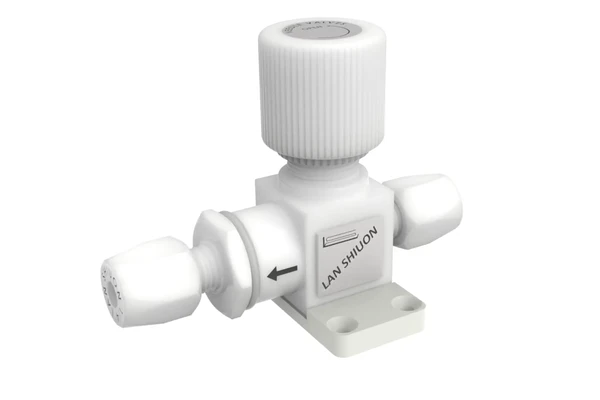

PTFE 可変式ニードルチェックバルブ
ADJUSTABLE NEEDLE CHECK VALVE
Material : TFM
| KIMDS | PART NAME | MATERIAL | |
|---|---|---|---|
| It's the part of contacting of liquid. |
3 | BODY | TFM |
| 4 | NEEDLE | PVDF，PEEK，PCTFE | |
| 6 | TUBE | PTFE，TEA，FEP |

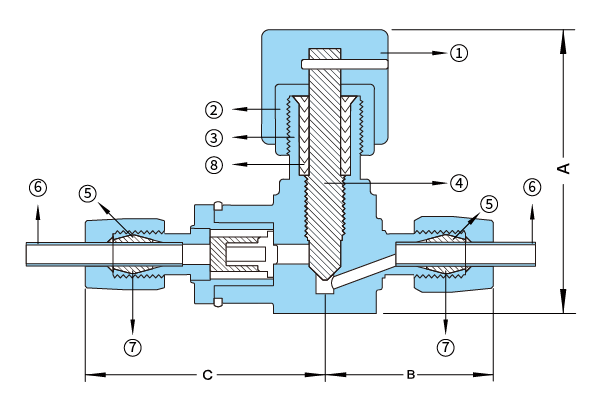

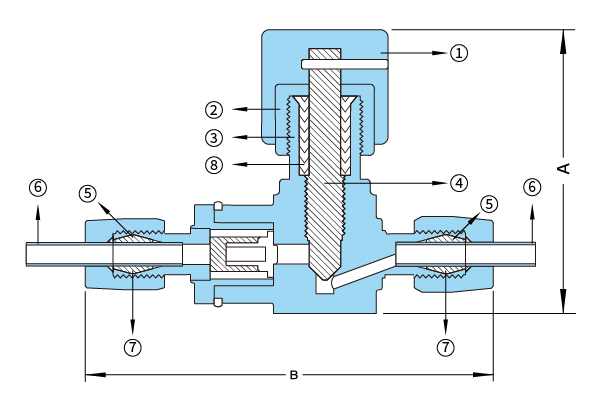

| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | HANDLE | UPE |
| 2 | GLAND | TFM |
| 3 | BODY | TFM |
| 4 | NEEDLE | TFM，PEEK，PCTFE |
| 5 | CAP | TFM |
| 6 | TUBE | PTFE，TEA，FEP |
| 7 | PRIMAPY SEAL | PTFE |
| 8 | GLAND PACKING | PTFE |
| Mm Tube Type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | B | C |
| Inch Tube Type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | B | C |
| Model | Cheek valve |
|---|---|
| How to use | Automatic |
| Action | Stem90° |
| Highest pressure | 0.4mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |
