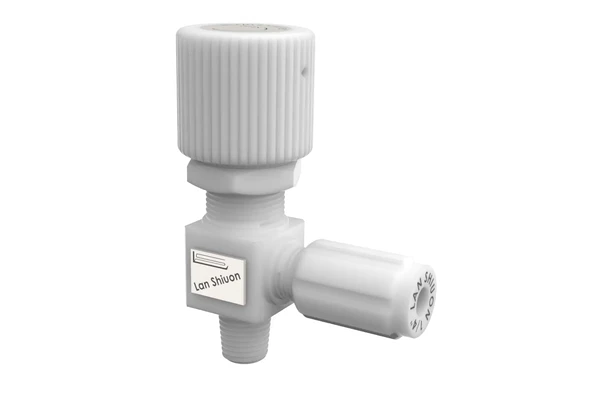

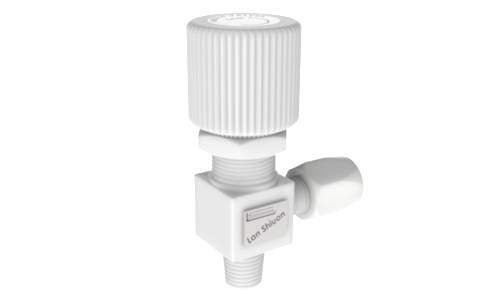

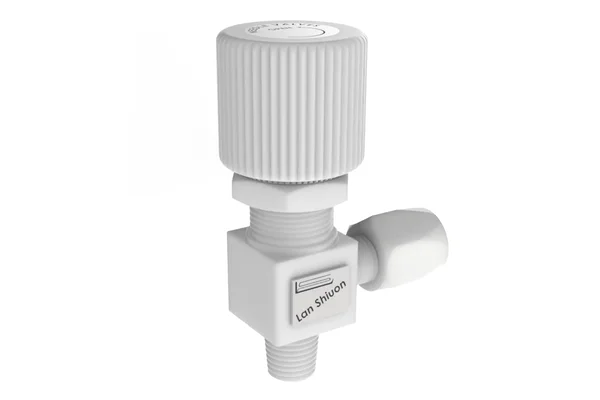

TFM 1PAL ニードルバルブ
TFM 1PAL NEEDLE VALVES
Material : TFM

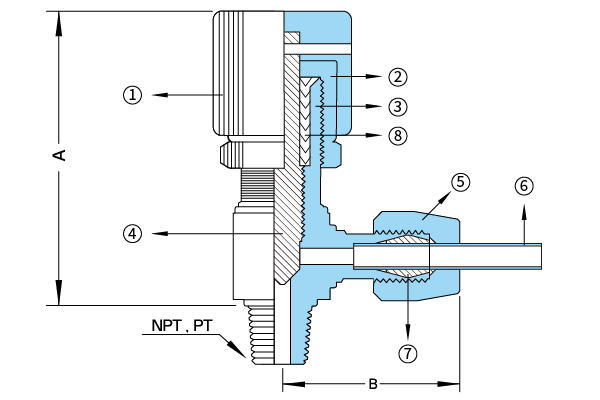

| Model |
|
| How to use |
Automatic |
| Action |
Stem90° |
| Highest pressure |
0.4mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |
| ITEM |
PART NAME |
MATERIAL |
| 1 |
HANDLE |
UPE |
| 2 |
GLAND |
TFM |
| 3 |
BODY |
TFM |
| 4 |
NEEDLE |
TFM，PEEK，PCTFE |
| 5 |
CAP |
TFM |
| 6 |
TUBE |
PTFE，PFA，FEP |
| 7 |
PRIMAPY SEAL |
PTFE |
| 8 |
GLAND PACKING |
PTFE |
| Mm Tube Type |
| NO. |
OD×ID |
A |
B |
C |
| 1PAL-N002 |
4×2 |
65 |
28 |
PT，NPT |
| 1PAL-N004 |
6×4 |
68 |
28 |
PT，NPT |
| 1PAL-N006 |
8×6 |
68 |
33 |
PT，NPT |
| 1PAL-N008 |
10×8 |
72 |
33 |
PT，NPT |
| 1PAL-N010 |
12×10 |
72 |
33 |
PT，NPT |
| 1PAL-N016 |
19×15.8 |
85 |
45 |
PT，NPT |
| 1PAL-N022 |
25×22 |
105 |
65 |
PT，NPT |
| Inch Tube Type |
| NO. |
OD×ID |
A |
B |
C |
| 1PAL-N004 |
1/8"×0.086" |
65 |
28 |
PT，NPT |
| 1PAL-N006 |
1/4"×5/32" |
68 |
28 |
PT，NPT |
| 1PAL-N008 |
3/8"×1/4" |
72 |
33 |
PT，NPT |
| 1PAL-N010 |
1/2"×3/8" |
72 |
33 |
PT，NPT |
| 1PAL-N016 |
3/4"×5/8" |
85 |
45 |
PT，NPT |
| 1PAL-N022 |
1"×7/8" |
105 |
65 |
PT，NPT |

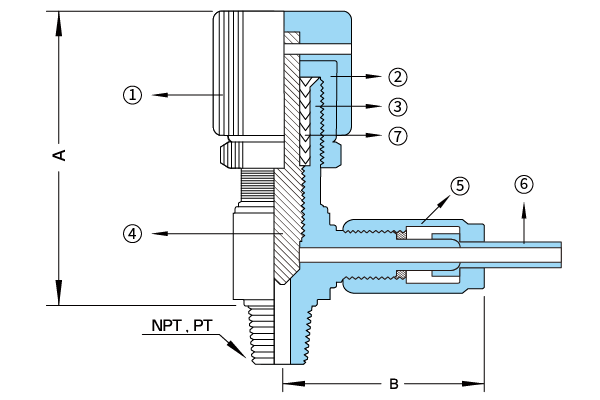

| Model |
|
| How to use |
Automatic |
| Action |
Stem90° |
| Highest pressure |
0.7mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |
| ITEM |
PART NAME |
MATERIAL |
| 1 |
HANDLE |
UPE |
| 2 |
GLAND |
TFM |
| 3 |
BODY |
TFM |
| 4 |
NEEDLE |
TFM，PEEK，PCTFE |
| 5 |
CAP |
TFM |
| 6 |
TUBE |
PTFE，PFA，FEP |
| 7 |
GLAND PACKING |
PTFE |
| Mm Tube Type |
| NO. |
OD×ID |
A |
B |
C |
| 1PAL-N002 |
4×2 |
65 |
28 |
PT，NPT |
| 1PAL-N004 |
6×4 |
68 |
28 |
PT，NPT |
| 1PAL-N006 |
8×6 |
68 |
33 |
PT，NPT |
| 1PAL-N008 |
10×8 |
72 |
33 |
PT，NPT |
| 1PAL-N010 |
12×10 |
72 |
33 |
PT，NPT |
| 1PAL-N016 |
19×15.8 |
85 |
45 |
PT，NPT |
| 1PAL-N022 |
25×22 |
105 |
65 |
PT，NPT |
| Inch Tube Type |
| NO. |
OD×ID |
A |
B |
C |
| 1PAL-N004 |
1/8"×0.086" |
65 |
28 |
PT，NPT |
| 1PAL-N006 |
1/4"×5/32" |
68 |
28 |
PT，NPT |
| 1PAL-N008 |
3/8"×1/4" |
72 |
33 |
PT，NPT |
| 1PAL-N010 |
1/2"×3/8" |
72 |
33 |
PT，NPT |
| 1PAL-N016 |
3/4"×5/8" |
85 |
45 |
PT，NPT |
| 1PAL-N022 |
1"×7/8" |
105 |
65 |
PT，NPT |
