PFA 省スペース型異径チーズ
Material : PFA

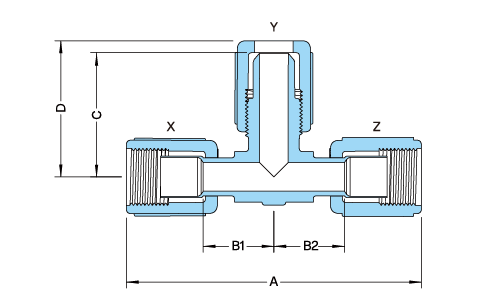

P·RT-TYPE Reducing Tee Fitting
.png)
寸法仕様表
| インチチューブタイプ | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| NO. | X | Y | Z | Orifice | A | B1 | B2 | C | D | ||
| 1/4" | 1/4" | 1/4" | 3 | 84 | 15 | 15 | 37 | 42 | |||
| 1/4" | 3/8" | 1/4" | 3 | 84 | 15 | 15 | 39 | 44 | |||
| 3/8" | 1/4" | 3/8" | 3 | 89 | 17 | 17 | 37 | 42 | |||
| 3/8" | 3/8" | 3/8" | 6 | 89 | 17 | 17 | 39 | 44 | |||
| 3/8" | 1/2" | 3/8" | 6 | 89 | 17 | 17 | 41 | 45 | |||
| 1/2" | 1/4" | 1/2" | 3 | 91 | 18 | 18 | 37 | 42 | |||
| 1/2" | 3/8" | 3/8" | 6 | 92 | 18 | 17 | 39 | 44 | |||
| 1/2" | 1/2" | 1/4" | 3 | 89 | 18 | 15 | 41 | 45 | |||
| 1/2" | 1/2" | 3/8" | 6 | 92 | 18 | 17 | 41 | 45 | |||
| 1/2" | 1/2" | 1/2" | 9 | 91 | 18 | 18 | 41 | 45 | |||
| 1/2" | 3/4" | 1/2" | 9 | 91 | 18 | 18 | 50 | 56 | |||
| 3/4" | 1/4" | 3/4" | 3 | 112 | 30 | 30 | 37 | 42 | |||
| 3/4" | 3/8" | 3/4" | 6 | 112 | 30 | 30 | 39 | 44 | |||
| 3/4" | 1/2" | 1/2" | 9 | 105 | 30 | 18 | 41 | 45 | |||
| 3/4" | 1/2" | 3/4" | 9 | 112 | 30 | 30 | 41 | 45 | |||
| 3/4" | 3/4" | 3/4" | 16 | 112 | 30 | 30 | 50 | 56 | |||
| 3/4" | 1" | 3/4" | 16 | 112 | 30 | 30 | 50 | 56 | |||
| 1" | 3/8" | 1" | 6 | 138 | 33 | 33 | 39 | 44 | |||
| 1" | 1/2" | 1" | 9 | 138 | 33 | 33 | 41 | 45 | |||
| 1" | 3/4" | 1" | 16 | 138 | 33 | 33 | 50 | 56 | |||
| 1" | 1" | 1" | 22 | 138 | 33 | 33 | 60 | 69 | |||
| 1-1/4" | 1-1/4" | 1-1/4" | 28 | 176 | 45 | 45 | 78 | 88 | |||
製品特長
- 優れた耐薬品性を有し、フッ酸・硫酸・硝酸などの強酸環境にも対応可能。
- 耐熱温度範囲：-18°C～200°C、1-1/2インチ以上の規格は150℃以下での使用を推奨。
- 低溶出・低吸着特性により、超純水および高い清浄度が要求される用途に最適。
- 滑らかでデッドスペースのない内面構造により、液体残留や汚染リスクを効果的に低減。
圧力／温度特性表
