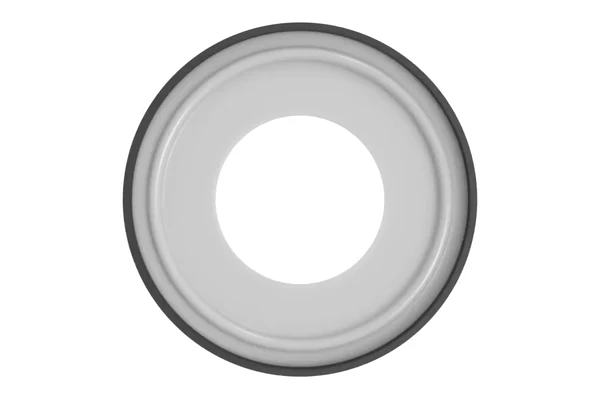

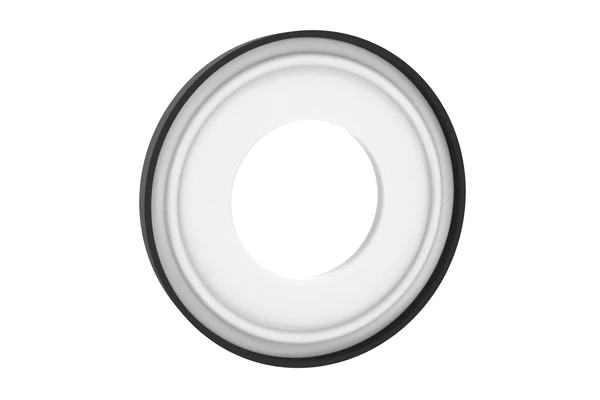

DS TYPE-ヘルールガスケット
Material : PTFE + VITON with FDA EPDM
.png)
材料 : 100% PTFE
ゴムパッキン材質 : VITON with FDA EPDM

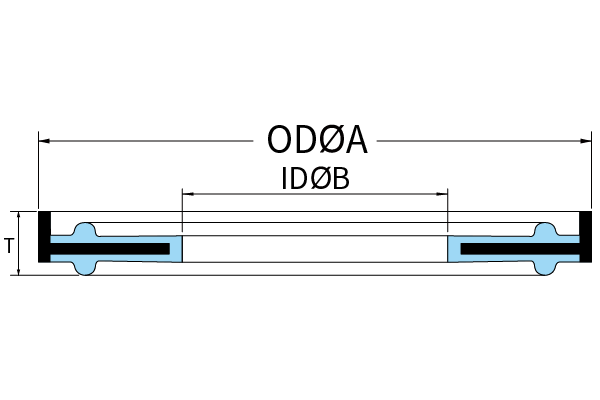

| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 8 | 36.2 | 10.5 | 5.4 |
| 10 | 36.2 | 14.2 | 5.4 |
| 15 | 36.2 | 18.3 | 5.4 |
| 15 | 52.7 | 18.3 | 5.4 |
| 20 | 52.7 | 13.9 | 5.4 |
| 25 | 52.7 | 29.9 | 5.4 |
| 32 | 52.7 | 38.6 | 5.4 |
| 32 | 66.2 | 38.6 | 5.4 |
| 40 | 66.2 | 44.5 | 5.4 |
| 50 | 79.7 | 56.6 | 5.4 |
| 65 | 93.2 | 72.3 | 5.4 |
| 80 | 108.2 | 84.5 | 5.4 |
| 100 | 132.2 | 109.9 | 5.4 |
| 125 | 157.2 | 134.5 | 5.4 |
| 150 | 185.2 | 163.2 | 5.4 |
| 200 | 235.7 | 213.9 | 5.4 |
(DS) DIN 規格
寸法公差 : T +0.2
材料 : 100% PTFE
ゴムパッキン材質 : VITON with FDA EPDM
| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 10 | 36.2 | 10.2 | 5.4 |
| 15 | 36.2 | 16.2 | 5.4 |
| 20 | 36.2 | 20.2 | 5.4 |
| 25 | 52.7 | 26.2 | 5.4 |
| 32 | 52.7 | 32.2 | 5.4 |
| 40 | 52.7 | 38.2 | 5.4 |
| 50 | 66.2 | 50.2 | 5.4 |
| 65 | 93.2 | 66.2 | 5.4 |
| 80 | 108.2 | 81.2 | 5.4 |
| 100 | 121.2 | 100.2 | 5.4 |
| 125 | 157.2 | 125.2 | 5.4 |
| 150 | 185.2 | 150.2 | 5.4 |
| 200 | 235.7 | 200.2 | 5.4 |
