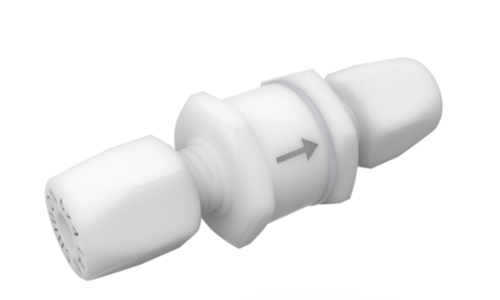

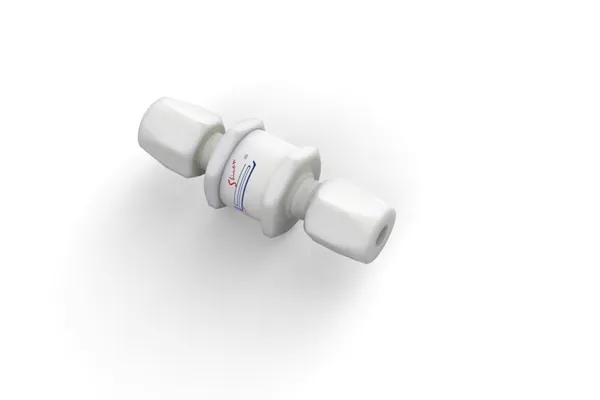

逆止弁
CHECK VALVE
Material : TFM
| ITEM |
PART NAME |
MATERIAL |
| 1 |
CAP |
TFM |
| 2 |
SPRING |
PFA |
| 3 |
BODY |
TFM |
| 4 |
BALL |
PTFE |
| 5 |
UNION NUT |
TFM |
| 6 |
PRIMRY SEAL |
PTFE |
| 7 |
TUBE |
PFA，EFP，PTFE |
| Model |
Cheek valve |
| Highest pressure |
0.4mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |

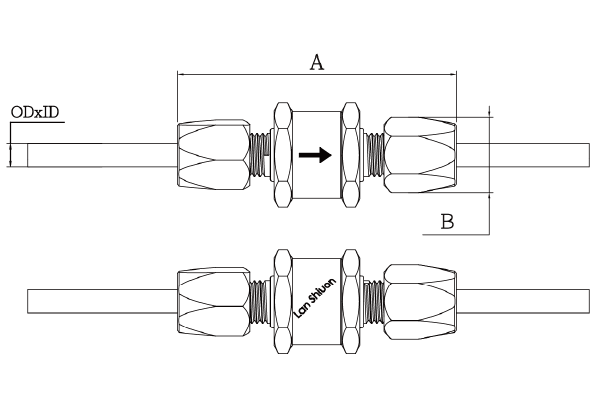

| Mm Tube Type |
| NO. |
OD×ID |
A |
B |
| CPAB-N002 |
4×2 |
69.5 |
15 |
| CPAB-N004 |
6×4 |
77 |
18 |
| CPAB-N006 |
8×6 |
78 |
21 |
| CPAB-N008 |
10×8 |
76 |
21 |
| CPAB-N010 |
12×10 |
80 |
25 |
| CPAB-N016 |
19×15.8 |
90 |
45 |
| CPAB-N022 |
25×22 |
105 |
50 |
| Inch Tube Type |
| NO. |
OD×ID |
A |
B |
| CPAB-I004 |
1/8"×0.086" |
69.5 |
15 |
| CPAB-I006 |
1/4"×5/32" |
77 |
18 |
| CPAB-I008 |
3/8"×1/4" |
77 |
21 |
| CPAB-I010 |
1/2"×3/8" |
80 |
25 |
| CPAB-I016 |
3/4"×5/8" |
90 |
45 |
| CPAB-I022 |
1"×7/8" |
105 |
50 |
