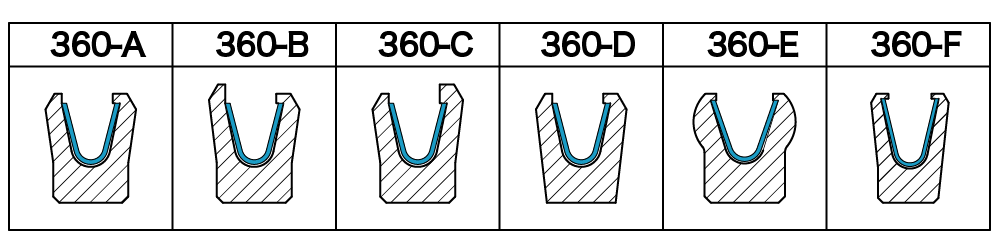

SpringSeal360-メートル制
お客様よりご指定いただいた寸法や図面に基づいて、カスタム製造にも対応可能です。あらゆる用途ニーズにお応えいたします。
|
製品品番 |
D シリンダ径 | d シャフト径 | h(t) |
|---|---|---|---|
| 36001 | 6 | 2 | 3.3 |
| 36002 | 6 | 3 | 3.3 |
| 36003 | 7 | 2 | 3.3 |
| 36004 | 7 | 2.5 | 3.3 |
| 36005 | 7 | 3 | 3.3 |
| 36006 | 7 | 4 | 3.3 |
| 36007 | 8 | 3 | 3.3 |
| 36008 | 8 | 3.8 | 3.3 |
| 36009 | 8 | 4 | 3.3 |
| 36010 | 8 | 5 | 3.3 |
| 36011 | 9 | 4 | 3.3 |
| 36012 | 9 | 4.5 | 3.3 |
| 36013 | 9 | 5 | 3.3 |
| 36014 | 9 | 6 | 3.3 |
| 36015 | 9.5 | 4 | 3.3 |
| 36016 | 9.5 | 4.5 | 3.3 |
| 36017 | 9.5 | 5 | 3.3 |
| 36018 | 10 | 4 | 3.3 |
| 36019 | 10 | 5 | 3.3 |
| 36020 | 10 | 6 | 3.3 |
| 36021 | 12 | 5 | 3.3 |
| 36022 | 12 | 6 | 3.3 |
| 36023 | 12 | 7 | 3.3 |
| 36024 | 12 | 8 | 3.3 |
| 36025 | 12 | 8.5 | 3.3 |
| 36026 | 12 | 9 | 3.3 |
| 36027 | 13 | 5 | 3.3 |
| 36028 | 13 | 6 | 3.3 |
| 36029 | 13 | 6.8 | 3.3 |
| 36030 | 13 | 7 | 3.3 |
| 36031 | 13 | 8 | 3.3 |
| 36032 | 13 | 8.5 | 3.3 |
| 36033 | 13 | 9 | 3.3 |
| 36034 | 13 | 10 | 3.3 |
| 36035 | 14 | 6 | 3.3 |
| 36036 | 14 | 6.8 | 3.3 |
| 36037 | 14 | 7 | 3.3 |
| 36038 | 14 | 8 | 3.3 |
| 36039 | 14 | 9 | 3.3 |
| 36040 | 14 | 10 | 3.3 |
| 36041 | 15 | 6 | 3.3 |
| 36042 | 15 | 7 | 3.3 |
| 36043 | 15 | 8 | 3.3 |
| 36044 | 15 | 9 | 3.3 |
| 36045 | 15 | 10 | 3.3 |
| 36046 | 16 | 7 | 3.3 |
| 36047 | 16 | 8 | 3.3 |
| 36048 | 16 | 9 | 3.3 |
| 36049 | 16 | 10 | 3.3 |
| 36050 | 16 | 12 | 3.3 |
| 36051 | 17 | 10 | 3.3 |
| 36052 | 17 | 12 | 3.3 |
| 36053 | 17 | 13 | 3.3 |
| 36054 | 18 | 8 | 3.3 |
| 36055 | 18 | 9 | 3.3 |
| 36056 | 18 | 10 | 3.3 |
| 36057 | 18 | 11.4 | 3.3 |
| 36058 | 19.2 | 12.6 | 3.3 |
| 36059 | 20 | 33.4 | 3.3 |
| 36060 | 22 | 14.6 | 3.7 |
| 36061 | 24 | 16.6 | 3.7 |
| 36062 | 25 | 42.6 | 3.7 |
| 36063 | 26 | 18.6 | 3.7 |
| 36064 | 28 | 20.6 | 3.7 |
| 36065 | 30 | 22 | 4 |
| 36066 | 31 | 23 | 4 |
| 36067 | 31.5 | 23.5 | 4 |
| 36068 | 33 | 25 | 4 |
| 36069 | 35 | 27 | 4 |
| 36070 | 35.4 | 27.4 | 4 |
| 36071 | 35.5 | 27.5 | 4 |
| 36072 | 38 | 29.6 | 4.2 |
| 36073 | 40 | 31.6 | 4.2 |
| 36074 | 41 | 32.6 | 4.2 |
| 36075 | 42 | 33.6 | 4.2 |
| 36076 | 44.5 | 36.1 | 4.2 |
| 36077 | 45 | 36.6 | 4.5 |
| 36078 | 50 | 41 | 4.5 |
| 36079 | 51.5 | 42.5 | 4.5 |
| 36080 | 55 | 46 | 4.5 |
| 36081 | 56 | 47 | 4.5 |
| 36082 | 60 | 51 | 4.5 |
| 36083 | 61 | 52 | 4.5 |
| 36084 | 63 | 54 | 4.5 |
| 36085 | 65 | 56 | 4.5 |
| 36086 | 66 | 57 | 4.5 |
| 36087 | 69 | 60 | 4.5 |
| 36088 | 70 | 60 | 5 |
| 36089 | 71 | 61 | 5 |
| 36090 | 75 | 65 | 5 |
| 36091 | 76 | 66 | 5 |
| 36092 | 80 | 70 | 5 |
| 36093 | 85 | 75 | 5 |
| 36094 | 90 | 79 | 5.5 |
| 36095 | 95 | 84 | 5.5 |
| 36096 | 100 | 89 | 5.5 |
| 36097 | 105 | 94 | 5.5 |
| 36098 | 110 | 97.6 | 6.2 |
| 36099 | 112 | 99.6 | 6.2 |
| 36100 | 115 | 102.6 | 6.2 |
| 36101 | 120 | 107.6 | 6.2 |
| 36102 | 125 | 112.6 | 6.2 |
| 36103 | 130 | 117 | 6.5 |
| 36104 | 132 | 119 | 6.5 |
| 36105 | 140 | 127 | 6.5 |
| 36106 | 150 | 136.6 | 6.7 |
| 36107 | 157 | 143.6 | 6.7 |
| 36108 | 160 | 146.6 | 6.7 |
| 36109 | 165 | 151.6 | 6.7 |
| 36110 | 170 | 156.6 | 6.7 |
| 36111 | 180 | 166.2 | 6.9 |
| 36112 | 185 | 171.2 | 6.9 |
| 36113 | 190 | 176.2 | 6.9 |
| 36114 | 200 | 185.6 | 7.2 |
| 36115 | 205 | 190.6 | 7.2 |
| 36116 | 210 | 195.6 | 7.2 |
| 36117 | 215 | 200.6 | 7.2 |
| 36118 | 220 | 205.6 | 7.2 |
| 36119 | 224 | 209.6 | 7.2 |
| 36120 | 225 | 210.6 | 7.2 |
| 36121 | 230 | 215.6 | 7.2 |
| 36122 | 240 | 225.6 | 7.2 |
| 36123 | 250 | 234.6 | 7.7 |
| 36124 | 260 | 244.6 | 7.7 |
| 36125 | 270 | 254.6 | 7.7 |
| 36126 | 275 | 259.6 | 7.7 |
| 36127 | 280 | 264.6 | 7.7 |
| 36128 | 290 | 274.6 | 7.7 |
| 36129 | 297 | 281.6 | 7.7 |
| 36130 | 300 | 284 | 8 |
| 36131 | 312 | 296 | 8 |
| 36132 | 332 | 316 | 8 |
