PFA 異径ティーユニオン継手
Material : PFA / P·RT-TYPE Reducing Tee Fitting

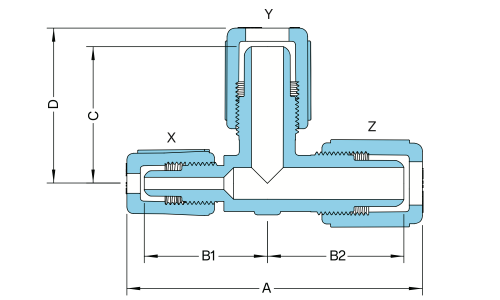

寸法仕様表
| インチチューブタイプ | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| NO. | X | Y | Z | Orifice | A | B1 | B2 | C | D | ||
| P·RT-WY627 | 1/4" | 1/4" | 3/8" | 3 | 85 | 37 | 39 | 37 | 42 | ||
| P·RT-WY628 | 1/4" | 3/8" | 1/4" | 3 | 84 | 37 | 37 | 39 | 44 | ||
| P·RT-WY629 | 1/4" | 1/2" | 1/4" | 3 | 84 | 37 | 37 | 41 | 45 | ||
| P·RT-WY630 | 3/8" | 1/4" | 1/4" | 3 | 85 | 39 | 37 | 37 | 42 | ||
| P·RT-WY631 | 3/8" | 1/4" | 3/8" | 3 | 89 | 39 | 39 | 37 | 42 | ||
| P·RT-WY632 | 3/8" | 3/8" | 1/4" | 3 | 85 | 39 | 37 | 39 | 44 | ||
| P·RT-WY633 | 3/8" | 1/2" | 3/8" | 6 | 89 | 39 | 39 | 41 | 45 | ||
| P·RT-WY634 | 3/8" | 3/4" | 3/8" | 6 | 89 | 39 | 39 | 50 | 56 | ||
| P·RT-WY635 | 1/2" | 1/4" | 1/4" | 3 | 89 | 41 | 37 | 37 | 42 | ||
| P·RT-WY636 | 1/2" | 1/4" | 3/8" | 3 | 92 | 41 | 39 | 37 | 42 | ||
| P·RT-WY637 | 1/2" | 1/4" | 1/2" | 3 | 91 | 41 | 41 | 37 | 42 | ||
| P·RT-WY638 | 1/2" | 3/8" | 3/8" | 6 | 92 | 41 | 39 | 39 | 44 | ||
| P·RT-WY639 | 1/2" | 3/8" | 1/2" | 6 | 91 | 41 | 41 | 39 | 45 | ||
| P·RT-WY640 | 1/2" | 1/2" | 1/4" | 3 | 89 | 41 | 37 | 41 | 45 | ||
| P·RT-WY641 | 1/2" | 1/2" | 3/8" | 6 | 92 | 41 | 39 | 41 | 45 | ||
| P·RT-WY642 | 1/2" | 3/4" | 1/2" | 9 | 91 | 41 | 41 | 50 | 56 | ||
| P·RT-WY643 | 1/2" | 1" | 1/2" | 9 | 91 | 41 | 41 | 60 | 69 | ||
| P·RT-WY644 | 3/4" | 1/4" | 3/4" | 3 | 112 | 50 | 50 | 37 | 42 | ||
| P·RT-WY645 | 3/4" | 3/8" | 3/4" | 6 | 112 | 50 | 50 | 39 | 44 | ||
| P·RT-WY646 | 3/4" | 1/2" | 1/2" | 9 | 105 | 50 | 41 | 41 | 45 | ||
| P·RT-WY647 | 3/4" | 1/2" | 1/4" | 3 | 103 | 50 | 37 | 41 | 45 | ||
| P·RT-WY648 | 3/4" | 1/2" | 3/4" | 9 | 112 | 50 | 50 | 41 | 45 | ||
| P·RT-WY649 | 3/4" | 3/4" | 1/4" | 3 | 103 | 50 | 37 | 50 | 56 | ||
| P·RT-WY650 | 3/4" | 3/4" | 3/8" | 6 | 112 | 50 | 39 | 50 | 56 | ||
| P·RT-WY651 | 3/4" | 3/4" | 1/4" | 9 | 103 | 50 | 41 | 50 | 56 | ||
| P·RT-WY652 | 3/4" | 1" | 3/8" | 16 | 110 | 50 | 50 | 60 | 69 | ||
| P·RT-WY653 | 1" | 1/4" | 1/2" | 3 | 105 | 60 | 60 | 37 | 42 | ||
| P·RT-WY654 | 1" | 3/8" | 3/4" | 6 | 112 | 60 | 60 | 39 | 44 | ||
| P·RT-WY655 | 1" | 1/2" | 1" | 9 | 138 | 60 | 41 | 41 | 45 | ||
| P·RT-WY656 | 1" | 1/2" | 1" | 9 | 138 | 60 | 60 | 41 | 45 | ||
| P·RT-WY657 | 1" | 3/4" | 1/2" | 16 | 132 | 60 | 50 | 50 | 56 | ||
| P·RT-WY658 | 1" | 3/4" | 1" | 16 | 138 | 60 | 60 | 50 | 56 | ||
| P·RT-WY659 | 1" | 1" | 1/4" | 3 | 119 | 60 | 37 | 60 | 69 | ||
| P·RT-WY660 | 1" | 1" | 3/8" | 6 | 123 | 60 | 39 | 60 | 69 | ||
| P·RT-WY661 | 1" | 1" | 1/2" | 9 | 132 | 60 | 41 | 60 | 69 | ||
| P·RT-WY662 | 1" | 1" | 3/4" | 16 | 126 | 60 | 50 | 60 | 69 | ||
| P·RT-WY663 | 1-1/4" | 1" | 1-1/4" | 22 | 176 | 78 | 78 | 60 | 88 | ||
| P·RT-WY664 | 1-1/2" | 1-1/4" | 1-1/2" | 27 | 217 | 94 | 94 | 78 | 88 | ||
| P·RT-WY665 | 1-1/2" | 1" | 1-1/2" | 22 | 217 | 94 | 94 | 60 | 69 | ||
製品特長
- 優れた耐薬品性を有し、フッ酸・硫酸・硝酸などの強酸環境にも対応可能。
- 耐熱温度範囲：-18°C～200°C、1-1/2インチ以上の規格は150℃以下での使用を推奨。
- 低溶出・低吸着特性により、超純水および高い清浄度が要求される用途に最適。
- 滑らかでデッドスペースのない内面構造により、液体残留や汚染リスクを効果的に低減。
圧力／温度特性表
