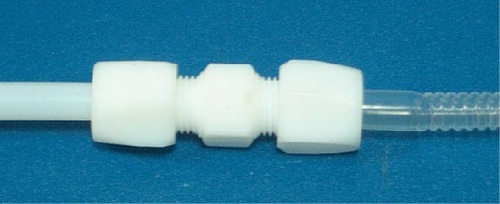

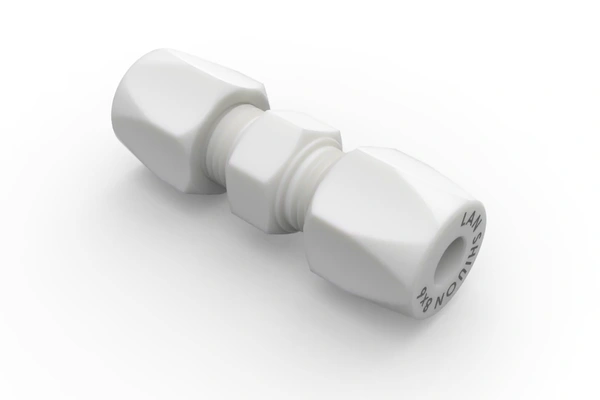

E-TYPE-UNION
Material : TFM

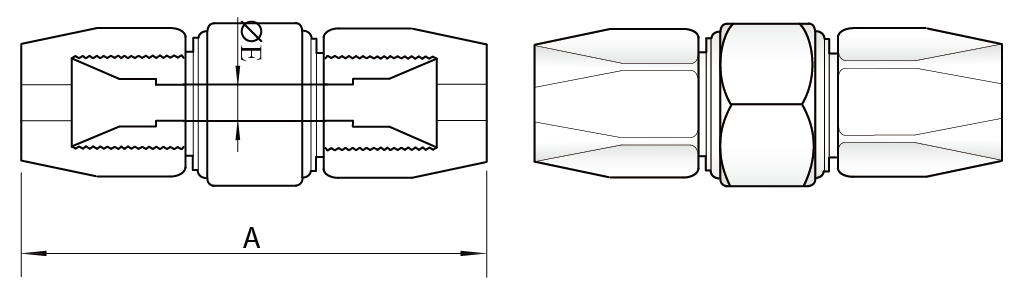

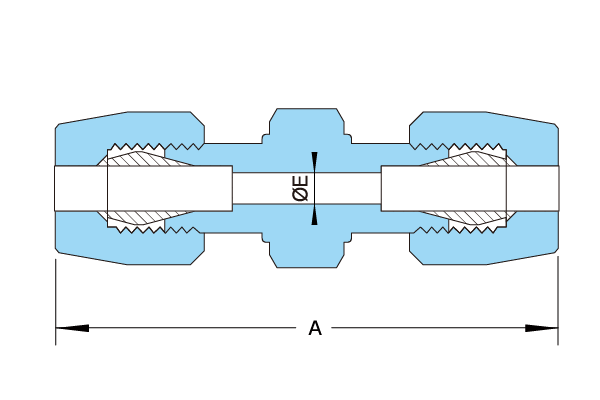

| Mm Tube type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | ØE | ||
| E-WY100 | 3×2 | 36.6 | 2.1 | ||
| E-WY101 | 4×3 | 36.4 | 3.1 | ||
| E-WY102 | 6×4 | 46 | 4.4 | ||
| E-WY103 | 8×6 | 51.8 | 6.5 | ||
| E-WY104 | 10×8 | 60.4 | 8 | ||
| E-WY105 | 12×10 | 67 | 10 | ||
| E-WY106 | 19×15.8 | 88.8 | 16 | ||
| E-WY107 | 25×22 | 105 | 22.2 | ||
| Inch Tube type | |||
|---|---|---|---|
| NO. | OD×ID | A | ØE |
| E-WY108 | 1/8"×0.086" | 36.6 | 2.1 |
| E-WY109 | 1/4"×5/32" | 46 | 4.4 |
| E-WY110 | 3/8"×1/4" | 60.4 | 8 |
| E-WY111 | 1/2"×3/8" | 67 | 10 |
| E-WY112 | 3/4"×5/8" | 88.8 | 16 |
| E-WY113 | 1"×7/8" | 105 | 22.2 |
